Ceramic Fiber Tube

Ceramic fiber tube is a high temperature resistant insulation material made of ceramic fiber, which has excellent heat resistance, thermal insulation and chemical stability.

≥1000℃
Service Temperature
18-539mm
Inner Diameter
30-150
Thickness (mm)
1250-1400ºC
Refractoriness Under Load

get price send email

Kerui Ceramic Fiber Tube Technical Data Sheet

Item/Grade		ASFT-1	ASFT-2
Service Temperature/℃		1000	1260
Color		White	White
Shot Content %/(Φ>0.25mm)		11	13.6
Bulk Density (kg/m³)		100-180	150-300
Permanent Linear Change %/(After 24 hours)	600℃	3.5	/
Permanent Linear Change %/(After 24 hours)	1000℃	/	2
Thermal Conductivity Coefficient/[W/(m·K)]	20℃	0.034	/
	400℃	0.09	/
	600℃	0.12	0.127
	1000℃	/	0.2

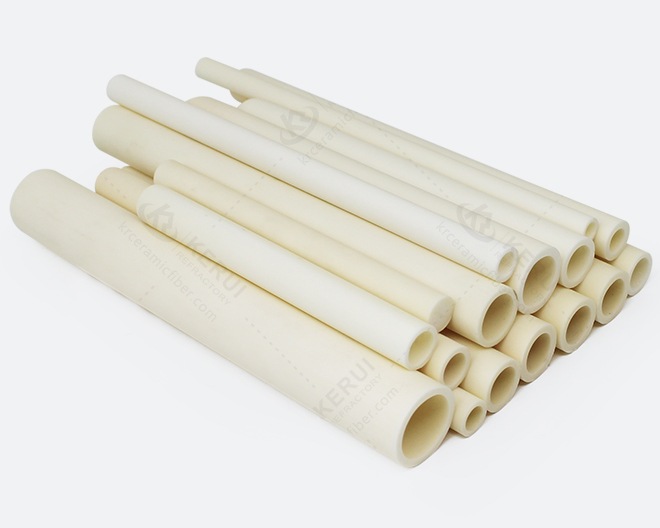

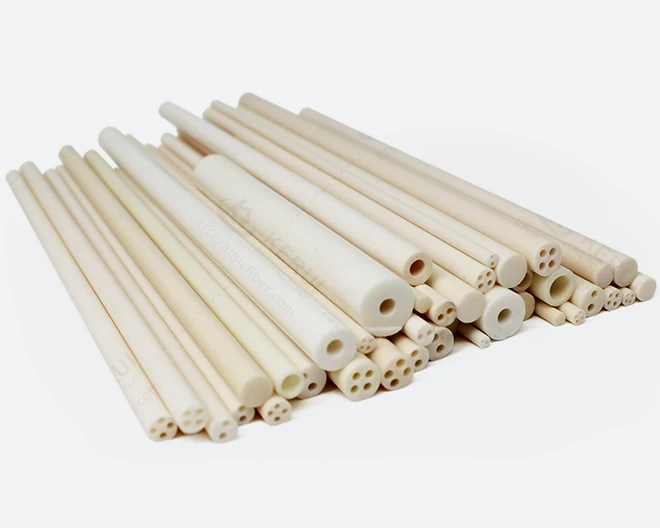

Ceramic Fiber Tube 1

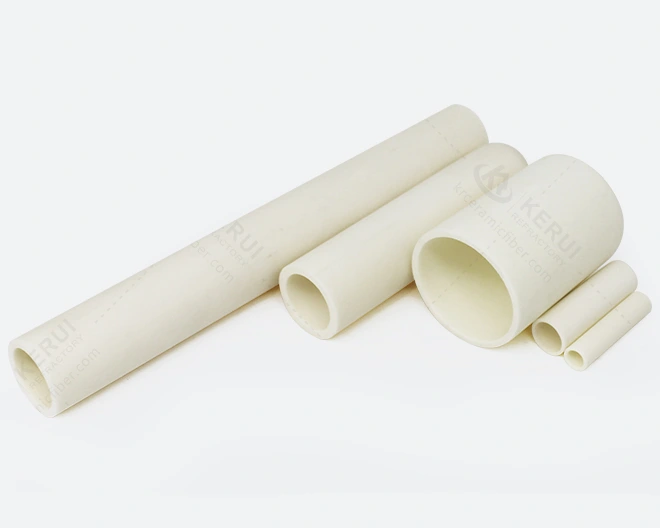

Ceramic Fiber Tube 2

GET PRICE

Description of Ceramic Fiber Tube

Ceramic fiber tube is a high temperature resistant insulation material made of ceramic fiber, which has excellent heat resistance, thermal insulation and chemical stability. It is often used in the fields of high temperature pipeline insulation, heat treatment equipment, electric heating element protection, etc. Ceramic fiber tube is light in weight, low in thermal conductivity, does not contain asbestos, is easy to construct, and is an ideal energy-saving refractory material.

High temperature resistance up to 1260°C

Low thermal conductivity and Lightweight.

Excellent thermal insulation

Good thermal shock resistance
