Calcium Silicate Pipe

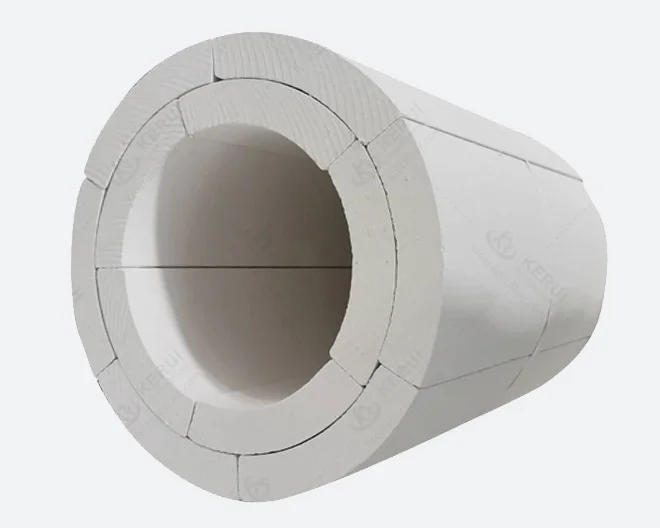

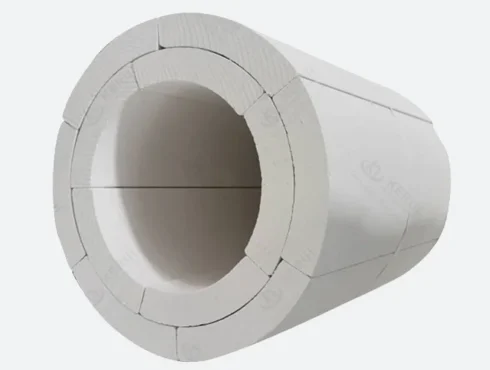

Calcium Silicate Insulation Pipe

Calcium Silicate Insulation Pipe is made of calcium silicate powder by thermoplastic reaction, and then mixed with inorganic fibers to form a kind of insulation material.
It is a non-asbestos high-performance insulation material, used in power stations, petrochemical plants, oil refineries, heat distribution systems and treatment plants with heat pipe system , provide high-quality thermal insulation protection.

  • 170/220/240/280

    Bulk Density (kg/m³)

  • ≥0.35

    Compressive strength (MPa)

  • 0.048/0.052

    Thermal conductivity(W/m.k)

  • 25-100mm

    Thickness

  • Kerui authentication

get price

Kerui Calcium Silicate Insulation Pipe Technical Data Sheet

Calcium Silicate ProductsKR-CS650KR-CS1000
Density(KG/M3)170/220/280170/220/240
Compressive strength(MPa)≥0.35≥0.35
W/m.kThermal conductivity (average temperature 70 ℃)0.0520.048
Maximum temperature(℃)6501000
Linear shrinkage(%)≤2(650,12hrs)≤2(1000,12hrs)
It can be processed into a shell and tube or curved panels according to customer requirements.

GET PRICE

Description of Calcium Silicate Insulation Pipe

Calcium silicate pipe is a white, hard new thermal insulation material.It has specific bulk density, high strength, low thermal conductivity, small, high temperature, corrosion, can be cut, saw, etc. It can be widely used in electric power, metallurgy , petrochemical, construction, ship equipment, pipe and other fields, wall and roof of thermal insulation and fire insulation. It is a light-weight and multiporous thermal insulation material.

Lightweight Thermal Insulation
High-Strength Material
Low Thermal Conductivity
Corrosion-Resistant Properties
